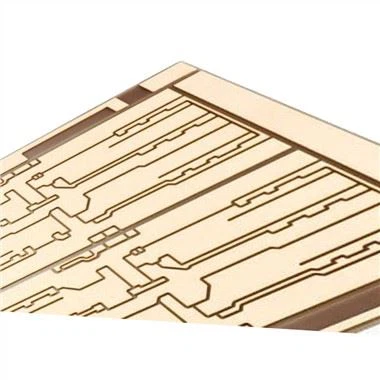

Circuits Ceramic PCB
circuits ceramic PCB are much better than ordinary glass fiber PCB sheets due to their heat dissipation performance, current carrying capacity, insulation, thermal expansion coefficient, etc., so they are widely used in high-power power electronic modules, aerospace, military electronics and other products.
Description
Product Detail
Model Number:circuits ceramic PCB
Type: ceramic pcb
Place of Origin: China
Brand Name:Beton
Base Material:Al2O3/ AlN
Copper Thickness:1-10oz
Board Thickness:0.2mm - 2mm
Min. Hole Size:0.07mm±0.02mm
Min. Line Width:0.075mm
Min. Line Spacing:0.075mm
Surface Finishing:Immersion Nickel/Gold/Silver/ Palladium, OSP
Board Size:Customized
Layer:1-4Layer
Keywords:ceramic fiber board
Delivery:Courier
Material:Fr4 94v0
Service:24Hours Technical Services
The manufacturing process of ceramic multilayer boards includes a one-time sintering multilayer method and a thick film multilayer method
1. One-time sintering multi-layer method
The ceramic blank is stamped and formed, the conductive layer is printed, the lamination or the printed insulating layer is formed, the shape is punched, the sintering is performed, and the precious metal is plated.
2. thick film multilayer method
The ceramic blank is stamped and formed, sintered, printed conductive layer, sintered, printed insulating layer, printed conductive layer, and sintered.
Ceramic printed circuit boards are mostly used as thick film and thin film circuits and hybrid circuit boards, which are used as circuit boards for power supplies and heating elements in automotive engine control circuits, video recorders, VCDs and other devices. Most of these printed boards contain components such as resistance and capacitance, so they can also be used as multi-chip circuit packages and electrical tuner boards.
Why we need circuit ceramic PCB:
There are two main reasons why ceramic PCBs for high power, high current and high operating temperature devices are needed compared to FR-4.
(1) Heat dissipation:
As mentioned above, FR-4 is not a good thermal conductor, but a good electrical insulator, so it cannot effectively dissipate or conduct heat on its own unless it is supported by active cooling elements such as fans and heat sinks. Operating temperature up to 350 O C.
(2) Coefficient of Thermal Expansion (CTE)
The second reason is the CTE mismatch between the FR-4 substrate and its conductor metal (i.e. copper). This will cause uneven heat distribution during thermal cycling and can damage weak parts of the PCB.
Common characteristics of ceramic PCBs:
(1) Extraordinary thermal conductivity
(2) Good mechanical strength
(3) High Density Interconnection (HDI) is easy to implement on ceramic PCB
(4) Compatibility of CTE with conductive layers, traces, and components.
(5) chemical corrosion resistance
(6) Provide better high frequency performance
Our Advantages：
1. Professional PCB and PCBA manufacturer over 18 years.
2.We can manufacture PCB from single-sided to complex multi-layered PCB.
3. Professional engineering team.
4. Quickest lead time!
5. Excellent service and quick response.
6.High quality control system.From Incoming Quality Control to In-Process Quality Control and Final Quality Control..
7. Low cost price production.
8. No MOQ.
