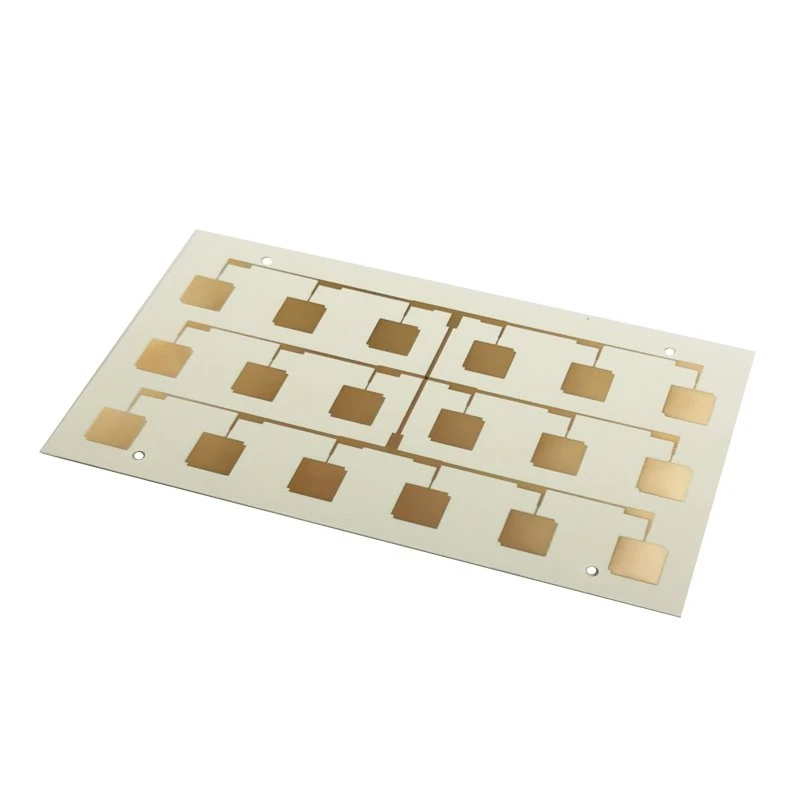

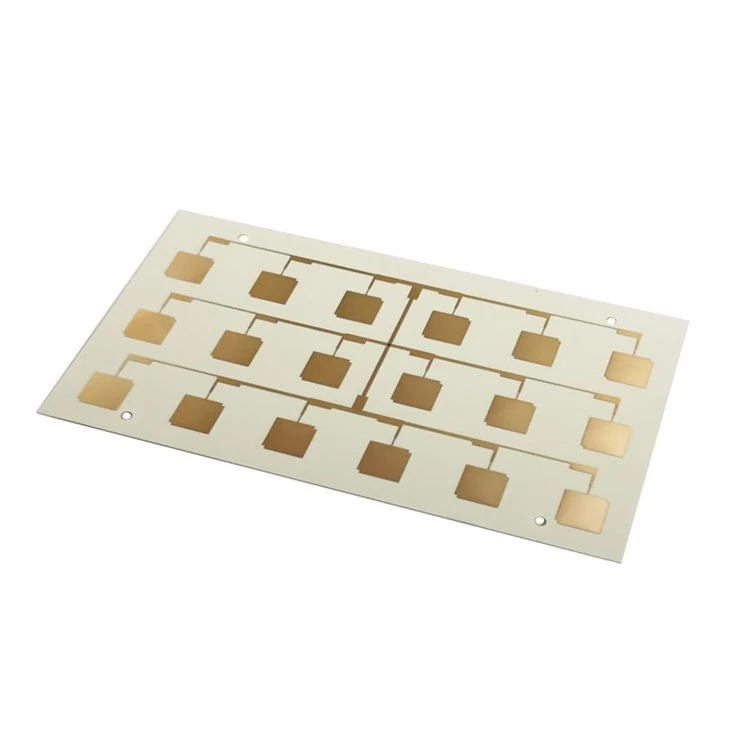

Copper Metal Core PCB
Copper metal core PCB, also known as MCPCB, Insulated Metal Substrate (IMS) or Thermal PCBS is one of the most widely used PCBs today. These PCBs are used in various industrial electronic devices.
Description
Product Detail
Layers: 4Layers
Board Thinkness:1.6mm
Base Material:Metal core
Min Holes:0.2mm
Minimum Line Width/Clearance：0.1mm/0.1mm
Minimum Clearance between Inner Layer PTH and Line： 0.2mm
Size：Customized
Surface treatment：OSP
Speciality: copper coin embedded
Differential impedance 100+7/-8Ω, 50+5/-5Ω
Applications:Telecommunication
Types of Metal Core PCBs
There are four basic types of PCBs based on the location of the metal core and the trace layers. They include:
(1) Single-layer MPCB: A PCB with a single trace layer on one side.
(2) Double layer MPCB: PCB with two trace layers on the same side.
(3) Double-sided MPCB: These PCBs have two trace layers on each side.
(4) Multilayer MPCB: These PCBs have more than two layers per board.
Copper metal core PCB Benefits
The following advantages of metal core PCB make it ideal for different industrial applications:
(1) High thermal conductivity: Standard PCBs with FR4 and CEM3 have weak interlayer insulation and low thermal conductivity. Without proper cooling, internal temperatures may increase and affect internal components. A metal PCB made of aluminum has excellent thermal conductivity and helps keep internal components safe.
(2) Good dimensional stability: Compared with FR4 or CEM3 PCB, metal core PCB exhibits good dimensional stability. When the aluminum PCB is heated to a temperature of 30 degrees Celsius to 140~150 degrees Celsius, its size will expand between 2.5-3%.
(3) High thermal expansion: Coefficient of thermal expansion (CTE) is a term used to describe the expansion or contraction of a substance at temperature. Aluminum and copper have higher CTE than common FR4 and thermal conductivity of 0.8~3.0 W/cK
Copper metal core PCB Application
(1) LED lights: spotlights, high current PCBs, high current LEDs, street safety applications and all applications that use LEDs.
(2) Automotive: power conditioners, ignition tools, swap converters, variable optical systems, and electric motors for electric and hybrid vehicles.
(3) Power equipment: DC-DC converters, voltage regulators, high-density power conversion and switching regulators.
(4) Audio equipment: balanced, input and output, audio, power and pre-shielded amplifiers.
(5) Other electronic equipment: IC arrays, semiconductor heat shields, IC carrier chips, solar cell substrates, radiators and semiconductor refrigeration equipment.
(6) Household appliances: flat panel displays, motor controls,
(7) lOA equipment: large electronic display substrates, thermal print heads and printer drivers.
