Product Detail

Beton has engaged in the electronic components industry over 10 years. We completely know the crux of the components supply chain.Beton focusing on the end users provides the intelligent BOM solution with the help of AI and big data. Now Beton is favored by more and more EMS, OEM, makers and electronics factories. Welcome to your attention, too!

Quick Details

Model: electronic component supplier

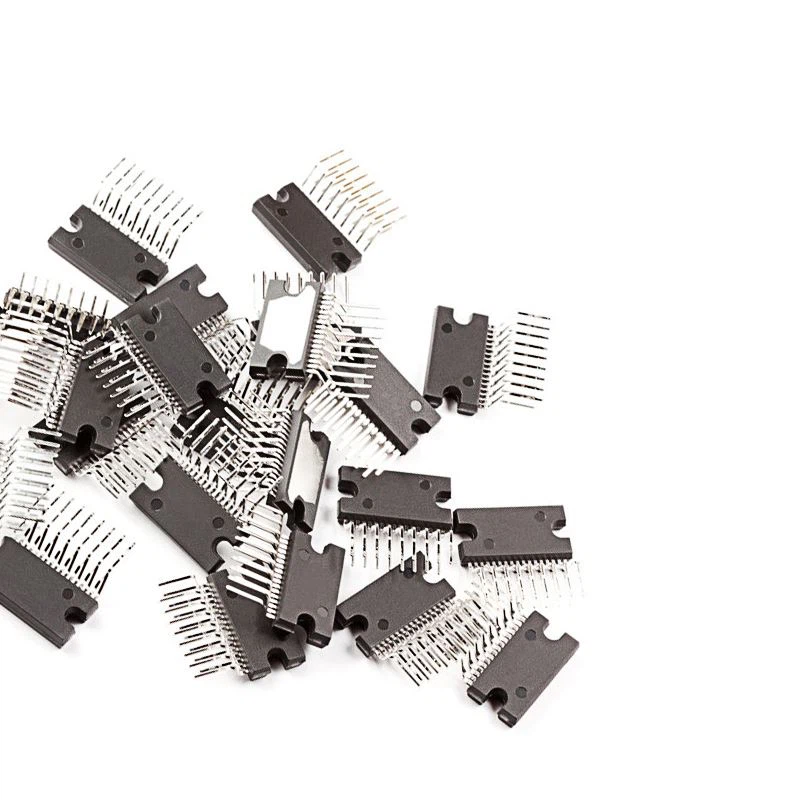

Type: voltage regulator

Origin:Shenzhen

D / P: customized

Conditions: OEM, ODM

Price: contact us

Data sheets: email

Payment: TT, Western Union, PayPal

One-stop electronics manufacturing services: Provide brand electronic equipment manufacturers with procurement from agency components, circuit board supply, design and application of built-in electronic equipment.

Provides and solves the whole process of electronic consumer products to the assembly of electronic circuits. At the same time, it is equipped with part of warehouse logistics management, quality control and technical services.

We had provided one-stop electronic product solution.

BETON ELECTRONICS will use automated machinery to solder components on your PCB as fast as possible, making use of your pick & place CAD data. Component positions, orientation and solder quality will normally be verified using Automatic Optical Inspection. AOI technology has proven to be extremely reliable whilst looking for errors in PCBs.

After assembly, the PCBA photos will be provided to you so you may confirm the components position via email. Please respond to the service email on time so your order may be processed and shipped out immediately. Quote now.

What are the processes of SMT chip processing

With the continuous improvement of production equipment and the improvement of SMT placement technology, SMT placement also has the advantages of good high-frequency characteristics, small size of electronic products, and high performance, making it gradually developed into the most popular one in the electronic assembly industry. This kind of technology, SMT chip processing is a high-precision processing industry. Next, the editor of Kuaifa Zhizao will share the specific process of SMT chip processing.

1. Material procurement and processing/incoming material inspection

The purchasing team purchases according to the BOM list sent by the customer. After purchasing, the material inspection and processing are carried out, or the customer provides the mounting material, and the material is inspected after receiving the material, and the processing is carried out after confirming that it is correct.

2. Silkscreen

Silk screen printing is the first process of SMT patch processing, mainly to print solder paste or patch glue on PCB pads to prepare for component welding. Then through a solder paste printer, the solder paste penetrates the stainless steel or nickel stencil to attach to the pad.

3. Dispensing

In SMT processing, the commonly used glue refers to red glue, and the red glue is dropped on the PCB position to play the role of determining the components to be welded.

4. Online SPI

Detect whether the position of the solder paste is correctly attached to the pcb, so that the problems in the previous process can be found and the welding quality can be guaranteed.

5. Mounting

Kuaifa Zhizao uses imported Yamaha YSM20 and YSM10 for patching, and accurately installs the surface mount components on the fixed position of the PCB.

6. After ten temperature zone nitrogen furnace equipment

After being mounted by a high-speed placement machine, it needs to go through a ten-temperature zone reflow nitrogen furnace. The main function is to melt the solder paste, so that the surface-mounted components and the PCB board are firmly bonded together.

7. Detection

In order to ensure the welding quality of the assembled PCB board, it is necessary to use equipment such as magnifying glass, microscope, in-line tester (ICT), flying probe tester, automatic optical inspection (AOI), X-RAY inspection system, etc. The main function is to detect PCB Whether the board has defects such as virtual welding, missing welding, cracks, etc.

8. Repair

If it is detected that the assembled PCB board has quality problems, it needs to be repaired. If there is no problem, it will be cleaned, put into storage, packaged and shipped.

FAQs

A.The component is original factory?

-Yes, we guarantee the oringinal factory package.

B.Will you use the substitute components?

-No, if we use the substitute components, we will attain customer's agreement.

C.Can you help to assembly?

-Yes, we have the own assembly line.

D.Could you manufacture PCBA?

-Yes, we are OEM/ODM factory.

E.Can I get the quick quotation?

-Yes, we will quote to you within 8 hours.
