Product Detail

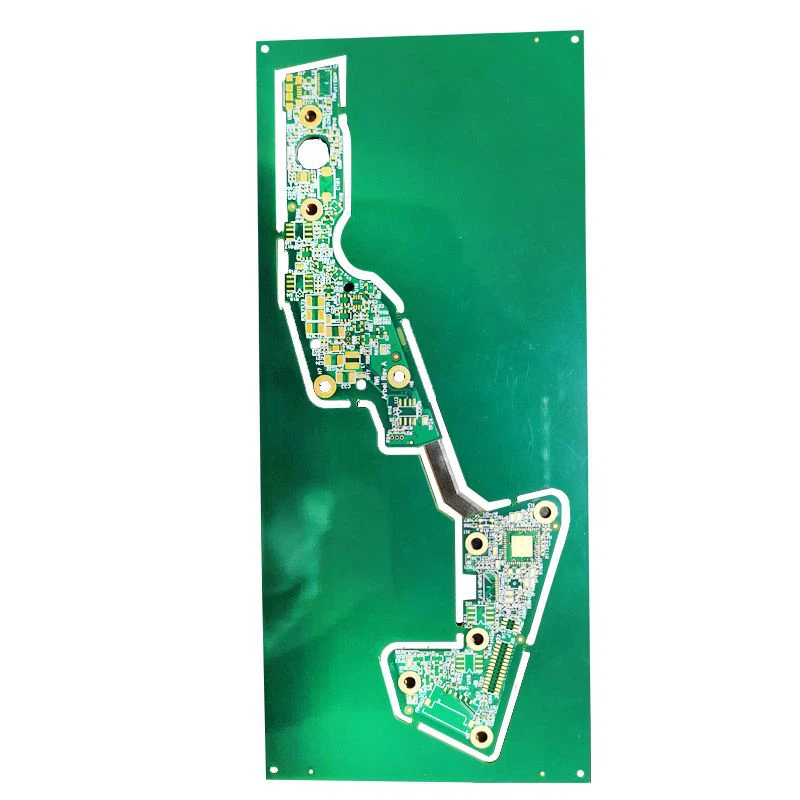

Rigid flex PCB Circuit boards were used in the field of battery modules. Now looking at all mobile phone brands in the world, it is a consensus to use rigid and flexible boards for batteries.

At the same time, in order to accommodate more lenses in a smaller and smaller space, mobile phone lens modules have begun to use Rigid-flex combination boards. Currently, Korean and Chinese brand mobile phones use Rigid Flex PCB Circuit Boards.

Beton Technology Co.,Ltd is professional Rigid Flex PCB Circuit Board manufacturer. So choose BETON PCBs factory for Rigid-Flex PCB manufacturing will makes your products more competitive with both price and quality.

Material: Polyimide or FR-4

Min hole: 0.15mm

Price：0.1~10 USD

Under what circumstances does a rigid-flex board need to be used in PCB manufacturing?

Rigid-flex board, that is, in PCB manufacturing, the flexible circuit board and the rigid circuit board are combined according to the relevant process requirements through lamination and other processes to form a circuit board with FPC characteristics and PCB characteristics; its price is high, but its use is extremely Extensive and can be tailored for applications in many industries.

1. High shock and high vibration environment. Rigid-flex boards have high impact resistance and can be applied in high stress environments and ensure stable equipment performance, which would otherwise lead to equipment failure.

2. High-precision applications where reliability is more important than cost considerations. If cable or connector failure is at risk, a more durable rigid-flex board is better.

3. High density application. Some components lack the surface area required for all the required connectors and cables, in this case rigid-flex boards are used to save space to address this.

4. Applications requiring multiple rigid boards. When an assembly is crowded with more than four connection boards, replacing them with a single rigid-flex board may be the best option and more cost-effective.

The applicaition of using Rigid-flex PCB

1. Industrial use

Industrial uses include rigid and flexible bonded boards for industrial, military and medical applications. Most industrial parts require precision, safety and invulnerability. Therefore, the required characteristics of soft and hard boards are: high reliability, high precision, low impedance loss, complete signal transmission quality and durability. However, due to the high complexity of the process, the yield is small and the unit price is quite high.

2. Mobile phone

In the application of mobile phone software and hardware boards, there are common folding mobile phone turning points, camera modules, keyboards, radio frequency modules, etc.

3. Consumer Electronics

In consumer products, DSC and DV are representatives of the development of flex and rigid boards, which can be divided into two main axes: performance and structure. In terms of performance, flex and rigid boards can connect different PCB rigid boards and components in three dimensions. Therefore, under the same line density, the total usable area of the PCB can be increased, its circuit carrying capacity can be relatively improved, and the signal transmission limit of the contacts and the assembly error rate can be reduced. On the other hand, since the soft and hard board is light and thin, the wiring can be bent, so it is very helpful to reduce the volume and weight.

4. Cars

In the use of automotive soft and hard boards, it is usually used to connect the buttons on the steering wheel to the main board, the connection between the vehicle video system screen and the control panel, the operation connection of the audio or function keys on the side door, the sensor of the parking radar image system (including air quality, temperature and humidity, special gas regulation, etc.), vehicle communication systems, satellite navigation, rear seat control panels and front controller connection boards, vehicle exterior detection systems, etc.

Beton rigid flex PCB circuit board gives you the best of both worlds.

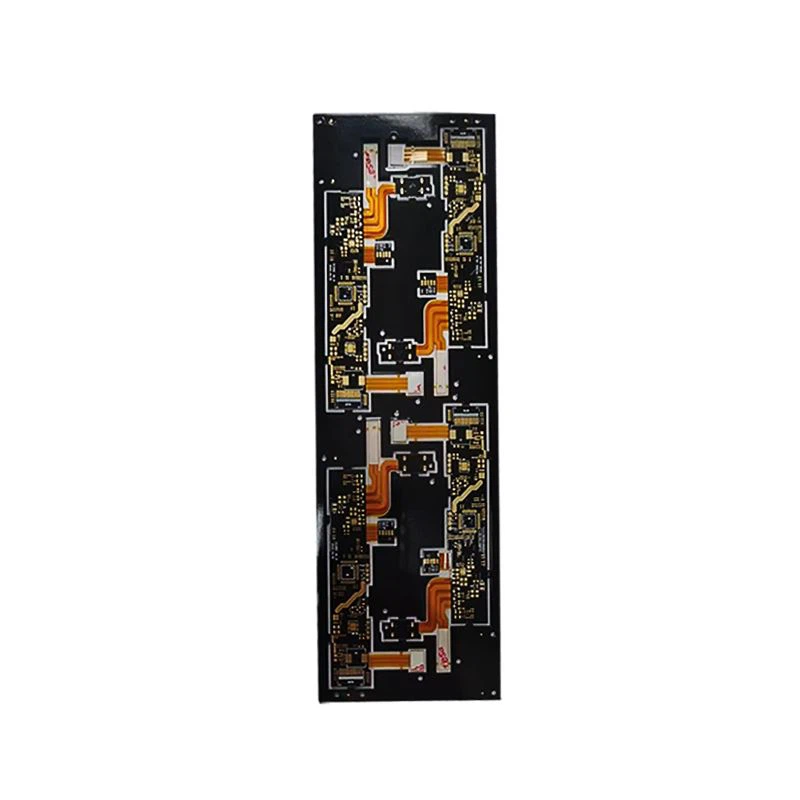

Our company adheres to the concept of 'serving customers and achieving the future', and provides high-quality Big Size Flex Rigid PCB Circuit Board Long Rfpc for customers with 'high-quality service, professional team and excellent management'. We have a strict and complete product testing system and testing equipment, and all production materials are strictly in and out. We organically combine the shaping of corporate culture and the construction of corporate spiritual civilization, forging a challenging corporate team spirit internally, enhancing execution and cohesion, and bursting out an endless overall innovation and affinity externally, ultimately forming a strong overall core competitiveness.
