Multilayer PCB Circuit Board
Established in 2003,Beton is a highly professional and experienced PCB and PCB Assembly Manufacturer who can offer one-stop service from PCB designing, manufacturing to PCB assembling, testing and housing. With in-time delivery after more than 18 years of successful experience on the global EMS market.
Description
Product Detail

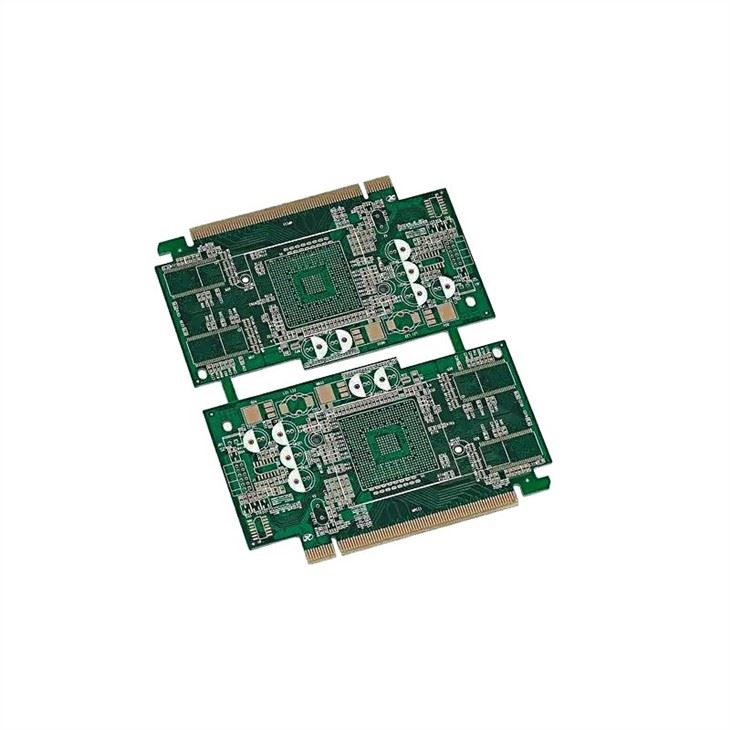

Multilayer PCBs are built by joining all the number of layers and materials at high temperature and pressure so as to remove any trapped air between the layers. Resin and adhesive material is used to stick the components and different layers together. You can choose from a number of materials such as exotic ceramic, epoxy glass, or Teflon etc. to build your PCB. The different prepreg and core layers are combined and go through the lamination process taking place at high temperature and pressure that helps to melt the layers together. After that the PCB is cooled down to form a hard and solid board.
Model:Custom multilayer circuit board |
Layers:4 Layer |
Thickness: 1.6mm |
Hole Size: 0.3mm |
Width/Space: 10/10mil |
Surface Treatment: immersion gold |
What is a multi-layer PCB board?
The biggest difference between PCB multilayer boards and single-sided and double-sided boards is the addition of internal power and ground planes. Power and ground nets are primarily routed on the power plane. Each substrate layer on a PCB multilayer board has conductive metal on both sides, and a special adhesive is used to connect the boards together, and there is an insulating material between each board. However, PCB multilayer wiring is mainly based on the top and bottom layers, supplemented by intermediate wiring layers.
Therefore, the design of multi-layer PCB boards is basically the same as that of double-sided boards. The key is how to optimize the routing of the internal electrical layers to make the routing of the circuit board more reasonable. The inevitable product of multifunctional development, large capacity and small volume.
Benefits of Multilayer PCBs (compared to single or double-sided PCBs)
● Higher assembly density
● Smaller size (considerable savings on space)
● Increased flexibility
● Easier incorporation controlled impedance features.
● EMI shielding through careful placement of power and ground layers.
● Reduces the need for interconnection wiring harnesses (reduces overall weight)
Purchase Tips:
1)For PCB order, please provide Gerber file or *pcb file. Any details are also welcomed if no Gerber file.
2)Large PCB quantity order, quotation will be based on SQM.
3)For PCBA order, please provide the Gerber file, pcb file and BOM List.
4)Reverse engineering and PCB clone service can be supplied with your printed circuit board supplied.
5)Any questions,welcome to contact our sales person by sending inquiry. Your satisfactions our pleasure.
