High Frequency 13.56MHz Mini FPC NFC Tags
High Frequency 13.56MHz Mini FPC NFC Tags have an ultra-small size of 9mm in diameter, which is more stable and resistant to etching, and can produce antennas with more stable frequency and smaller size. FPC labels made of flexible materials have been tested and verified for a long time, and their stability has been recognized by the entire industry.
Description
Product parameters
|
Item |
Describe |
Remark |
| Antenna size | 9mm | |
| Finish size | 9.7±0.2mm | |
| Product thickness | 0.67mm±0.05mm | Adhesive and release paper thickness |
| Base material | PI | |
| Main packaging material | Wafer + PI + etched copper line + epoxy resin | |
| Antenna material | Copper etching | |
| Working frequency: | HF 13.56Mhz | |
| Memory Capacity | 144 byte\1k byte\896 bit | |
| Working agreement | ISO/ICE 14443A | |
| Tag chip | NTAG213 / FM11RF08 / I CODE SLIX | |
| Reading and writing distance | 1-3 cm | |
| Read and write times | 100,000 cycles | |
|
Data retention |
10 years | |
| Electrostatic protection | ±2KV |

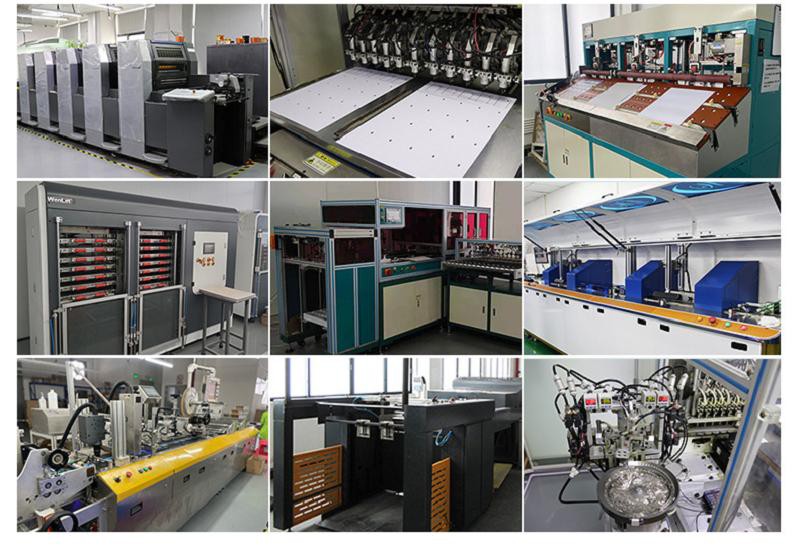

What is the manufacturing process of High Frequency 13.56MHz Mini FPC NFC Tags
There are two manufacturing process for High Frequency 13.56MHz Mini FPC NFC Tags: FPC manufacturing process and Chip wiring and bonding.
1.FPC manufacturing process
Raw materials → Cutting → Drilling → Antenna → Combination → Lamination → Gold immersion (cleaning pad) → Electrical test → Silk screen printing →. Appearances are placed separately.
2.Chip wiring and bonding
Appearance inspection → Fixed wafer → Bonding → Epoxy resin bonding inspection → Baking and curing part cutting → Pasting magnetic pad → Finished product testing → Packaging
The Advanges of High Frequency 13.56MHz Mini FPC NFC Tags
HF 13.56MHz Mini FPC NFC Tags combine long-range reading, excellent continuity, high sensitivity, ultra-thinness and high recognition rate. They are also waterproof, dustproof, shockproof, anti-pollution and temperature-resistant, ensuring that they can be used in various environments to run stably and reliably.
| Longer reading distance Better continuity and higher sensitivity Reliable reading distance, long-distance reading, high recognition rate, safe and reliable, good sensitivity |
 |
 |
Ultra-thin design with high recognition rate Anti-static packaging, easy to store Easy to transport, stable performance Easy to paste and easy to operate |
| Waterproof and dustproof Shockproof and pollution-proof Suitable for traceability in industrial environments Electronic identification, management, storage, transportation, etc. |
 |
 |
Good temperature resistance Stable performance High temperature resistance, performs well in high temperature environments Strong impact resistance, safe and stable |
Intelligent RFID chip parameter table
| IC model | Type | Frequency | capacity | Protocol |
| FM4442 | Contact | 256B | ISO7816 | |
| FM4428 | 1KB | |||
| HT4168(ID CARD) | Low frequency: 125Khz Contactless |
Low frequency(LF): 125Khz | 256B | ISO 11785 |
| TK4100(ID CARD) | 256B | |||
| EM4200(ID CARD) | 64B | |||
| EM4305 (ID CARD) | 64B | |||
| T5577(ID CARD) | 330B | |||
| FM11RF08 | High frequecy(HF): 13.56Mhz | 1KB | ISO 14443A | |
| FM1208-9(8K CPU) | 8KB | |||
| FM1208-10(7+1) CPU) | 8KB | |||
| ISSI4439 | 1KB | |||
| NTAG213/FM11NT021 | 1KB | |||
| NTAG215/FM11NT041 | 4KB | |||
| NTAG216/FM11NT081 | 144B | |||
| Mifare S50 | 504B | |||
| Mifare S70 | 888B | |||
| Mifare ultralight | 64B | |||
| Mifare Ultralight EV1 | 512B | |||
| I-CODE 2/I-CODE SLI | 1KB | ISO 15693 | ||
| I-CODE SLI-X | 1KB | |||
| I-CODE SLI-S | 2KB | |||
| Impinj Monza4d | Ultra high frequency(uUHF): 860MHz~960MHz | 128bit | ISO18000-6C | |
| Impinj Monza4E | 96-496bit | |||
| Impinj Monza4QT | 128bit | |||
| Impinj Monza R6 | 96bit | |||
| Impinj Monza R6-P | 128bit | |||
| Impinj Monza M730 | 128bit | |||
| Impinj Monza M750 | 96bit | |||
| Impinj Monza M780 | 496bit | |||
| Impinj Monza M781 | 128bit | |||
| Alien Higgs3 | 96bit | |||
| Alien Higgs9 | 96bit | |||
| NXP U code 8 | 128bit | |||
| NXP U code 9 | 96bit |
If the ICs you require are not listed in the table, please contact us for more information about the IC models.
What is the application of High Frequency 13.56MHz Mini FPC NFC Tags
High Frequency 13.56MHz Mini FPC NFC Tags, with its significant advantages such as high-frequency communication, compact design, and high-capacity storage, have demonstrated strong application potential and value in multiple management fields.
1. Warehouse management
In the field of warehouse management, High Frequency 13.56MHz Mini FPC NFC Tags quickly read item information through high-frequency communication to achieve accurate inventory tracking and goods positioning. Its miniaturized design allows labels to be easily attached to various items, while high-capacity storage can accommodate rich product information.
2. Vehicle management
In the field of vehicle management, the application of High Frequency 13.56MHz Mini FPC NFC Tags has significantly improved management efficiency. Tags can be installed on vehicles to quickly read and identify vehicle information through high-frequency communication.
3. Liquor management
In the field of wine management, High Frequency 13.56MHz Mini FPC NFC Tags are used for anti-counterfeiting traceability and inventory management. The unique identification code on the label can record the production batch, circulation path and other information of the wine. Both consumers and merchants can verify the authenticity of the product by reading the label information.
4. Library management
In the field of book management, the application of High Frequency 13.56MHz Mini FPC NFC Tags realizes the automation of book borrowing, return and inventory. Readers can quickly borrow books through tags, and librarians can quickly complete inventory and organization of books. This not only improves management efficiency, but also improves readers' borrowing experience.
5. Clothing Management
In the field of clothing management, High Frequency 13.56MHz Mini FPC NFC Tags provide strong support for inventory management, sales tracking and anti-counterfeiting traceability. Through tag reading, merchants can understand inventory status in real time and avoid backlogs and out-of-stocks. At the same time, consumers can also verify the authenticity of products by reading label information, improving shopping confidence.
6. Asset Management
In the field of asset management, the application of High Frequency 13.56MHz Mini FPC NFC Tags makes asset tracking and inventory more convenient. Tags can be attached to various types of assets and achieve rapid reading and identification through high-frequency communication. This greatly improves the efficiency and accuracy of asset management and reduces the risk of asset loss and waste.
7. Animal Management
In the field of animal management, High Frequency 13.56MHz Mini FPC NFC Tags provide reliable support for animal identification and vaccination records. Tags can be implanted into or attached to animals, enabling rapid reading and identification through high-frequency communications. This helps managers quickly understand the health status and vaccination status of animals and improve management efficiency.
8. Jewelry Management
In the field of jewelry management, the application of High Frequency 13.56MHz Mini FPC NFC Tags enables anti-counterfeiting traceability and inventory management of jewelry. The unique identification code on the label can record the production batch, material and other information of the jewelry. Both consumers and merchants can verify the authenticity of the product by reading the label information. High-frequency communication ensures the rapid transmission of information and enhances consumers' trust in jewelry products.
High Frequency 13.56MHz Mini FPC NFC Tags are widely used in warehouse management, vehicle management, liquor management, library management, clothing management, asset management, animal management, jewelry management and other fields. Its high-frequency communication, miniaturized design and high-capacity storage make the management process more efficient, convenient and accurate. With the continuous advancement of technology and the expansion of application scenarios, High Frequency 13.56MHz Mini FPC NFC Tags will demonstrate its unique value in more fields.
